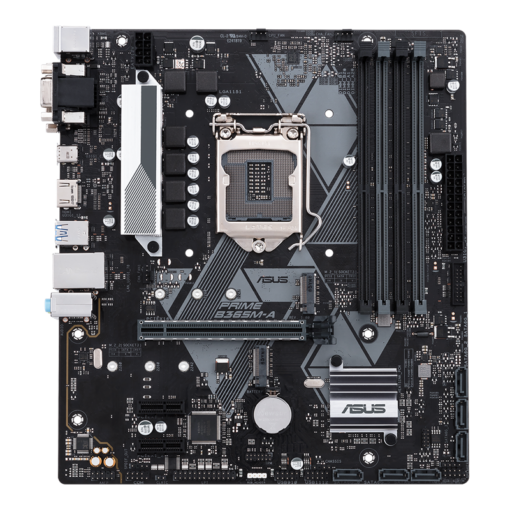

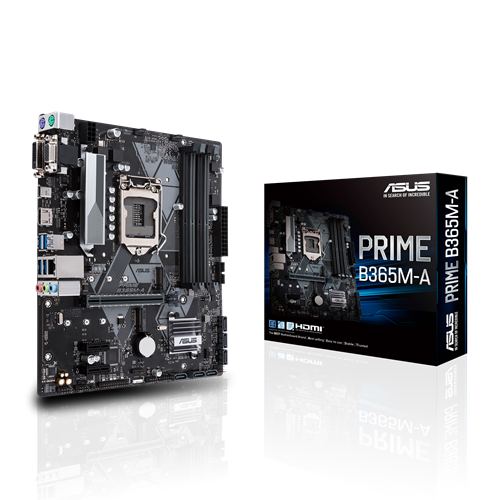

Motherboard Asus Prime B365M-A DDR4 9th Gen

CPU Intel® Socket 1151 for 9th / 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 Chipset Intel® B365 Memory Intel® B365 Chipset 4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/D-Sub ports – Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 30  Hz – Supports DVI with max. resolution 1920  x 1200  @ 60 Hz – Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz Maximum shared memory of 1024  MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Expansion Slots 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0/2.0 x1 Storage Intel® B365 Chipset : 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), gray Support Raid 0, 1, 5, 10 Intel® Rapid Storage Technology supports Intel® Optane™ Memory Ready LAN Realtek® RTL8111H, 1 x Gigabit LAN ASUS LAN Guard Audio Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports Intel® B365 Chipset : Intel® B365 Chipset : 7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, , 4 x Type-A 1 x Type-C, 2 at mid-board) Intel® B365 Chipset : 4 x USB 2.0/1.1 port(s) (4 at mid-board) Special Features ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI VRM: Premium components provide better power efficiency ASUS OptiMem： – Optimem (Improved DDR4 stability) ASUS EPU : – EPU ASUS Exclusive Features : – AI Suite 3 – Ai Charger – PC Cleaner ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert 2 ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode ASUS Q-Design : – ASUS Q-DIMM M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 1 x USB 3.1 Gen 1 USB Type-CTM up to 5Gbps 4 x USB 3.1 Gen 1 Type-A 1 x 8-channel Audio I/O Internal I/O Ports 1 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Chassis intrusion header 1 x Speaker connector Accessories User´s manual I/O Shield 2 x SATA 6Gb/s cable(s) 2 x M.2 screws 1 x Supporting DVD BIOS 128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WOL by PME, PXE Operating System Windows® 10 64-bit Form Factor mATX Form Factor 9.6  inch x 8.6  inch ( 24.4  cm x 21.8  cm )
